ALGcom 4.9-6.425Ghz| 18dBi | Front-to-back ratio: >40dB | Beamwidth: 21.3°
fig.sh-5800-18-3 · 01 / 03

ALGcom

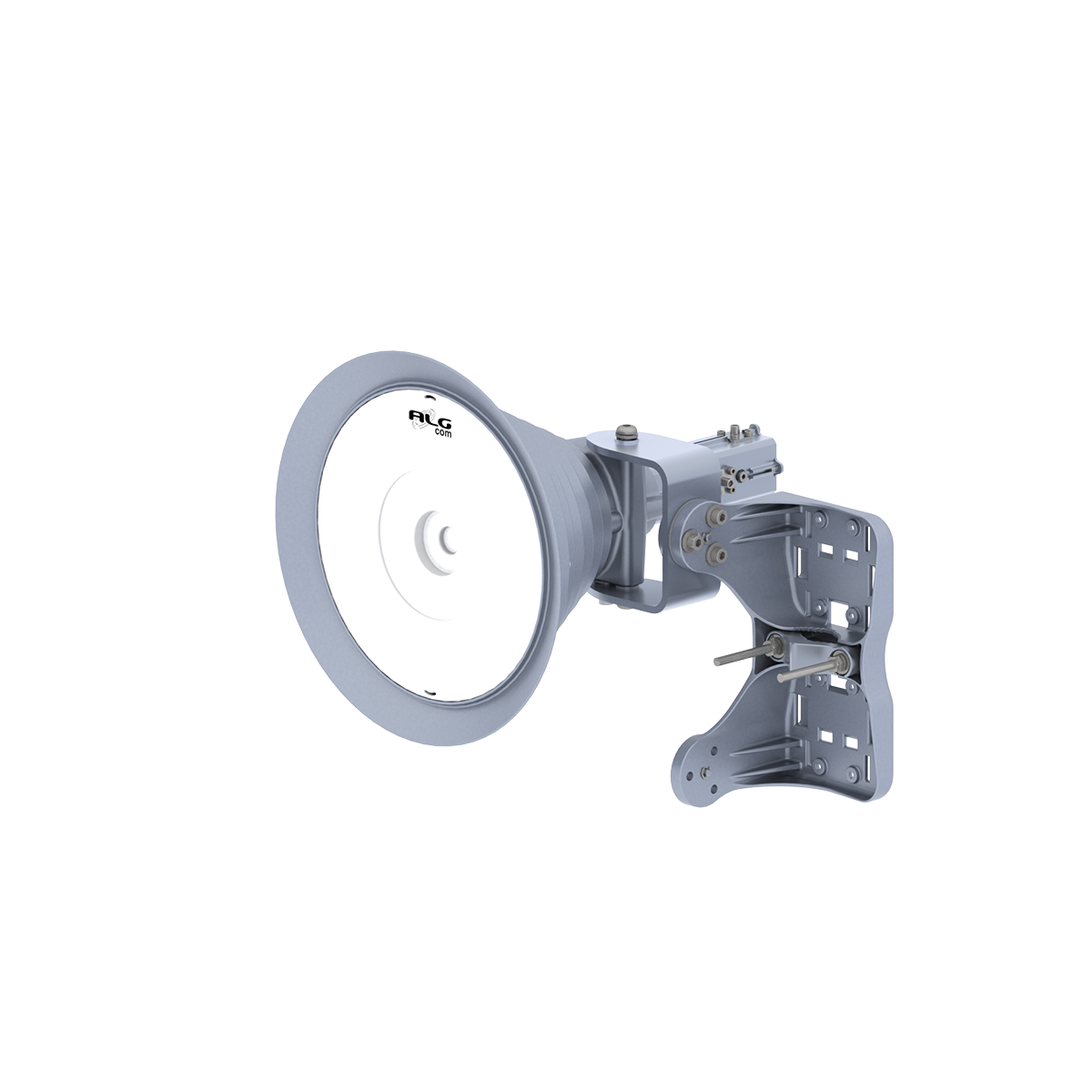

ALGcom SH-5800-18-30-D 4.9-6.425GHz 18dBi Symmetric Horn Antenna 30deg

Antenna

SKU
SH-5800-18-30-D
Brand
ALGcom
Stock — JHB
8 in JHB
R 2 525,00Price incl VAT

Same-day dispatch · cut-off 12:00

  • 25Ghz
  • 18 dBi gain

Product Description

The Algcom 4.9-6.425Ghz| 18dBi | Front-to-back ratio: >40dB | Beamwidth: 21.3° | SH-5800-18-30-D is a high-performance antenna designed for use in a wide range of applications. With its 4.9-6.425Ghz frequency, 18dBi gain, and 21.3° beamwidth, this antenna provides excellent signal quality and range, allowing you to connect to distant networks and devices with ease.

The antenna features a front-to-back ratio of >40dB, which provides exceptional rejection of interfering signals, and a beamwidth of 21.3°, which allows for highly directional signal control. Whether…

  • Authorised distribution
  • Same-day dispatch · cut-off 12:00
  • RMA · 5-day turnaround

Datasheet

Specifications

At-a-glance datasheet

Specifications

source · vendor datasheet

Pricing

Price (incl 15% VAT)
R 2 525,00
Stock — JHB
8 units

Identification

SKU
SH-5800-18-30-D
Brand
ALGcom
Categories
Antennas
Highlights
25Ghz, 18 dBi gain

Shipping

Boxed dimensions (L×W×H)
39.5 × 31 × 32.5 cm
Boxed weight
3.15 kg

Technical specifications

COMMERCIAL NAME
Symmetric Sector
POLARIZATION
Double (V and H) or Simple (V and H)
GAIN
18.8 dBi
CONNECTION
Female N or Reverse Female SMA
OPENING ANGLE -3 DB
21.3°
OPENING ANGLE -6 DB
30 °
INSULATION BETWEEN DOORS
> 30 dBi
WEIGHT
2.52 kg
FREQUENCY
4.9 - 6.425 GHz
FRONT-TO-BACK RELATIONSHIP
> 40 dB
LINK
Point to Point
WARRANTY
3 Years
fig.sh-5800-18-30-dpricelist · switchcom-pastel-2025-10-06

Stock indicative · live counts arrive with SC-301 · vendor datasheet linked above for full electrical / RF specifications.
