ALGcom 4.9-6.425Ghz| 10dBi | Front-to-back ratio: >37dB | Beamwidth: 61.4°
fig.sh-5800-10-9 · 01 / 03

ALGcom

Algcom Symmetric Horn Antenna 4.9-6.425GHz 10dBi 90°

Antenna

SKU
SH-5800-10-90-D
Brand
ALGcom
Stock — JHB
22 in JHB
R 3 330,00Price incl VAT

Same-day dispatch · cut-off 12:00

  • 4.9-6.425GHz full band
  • 10dBi gain
  • 90° sector (~61° HPBW)
  • Front-to-back ratio >37dB
  • PtMP sector antenna

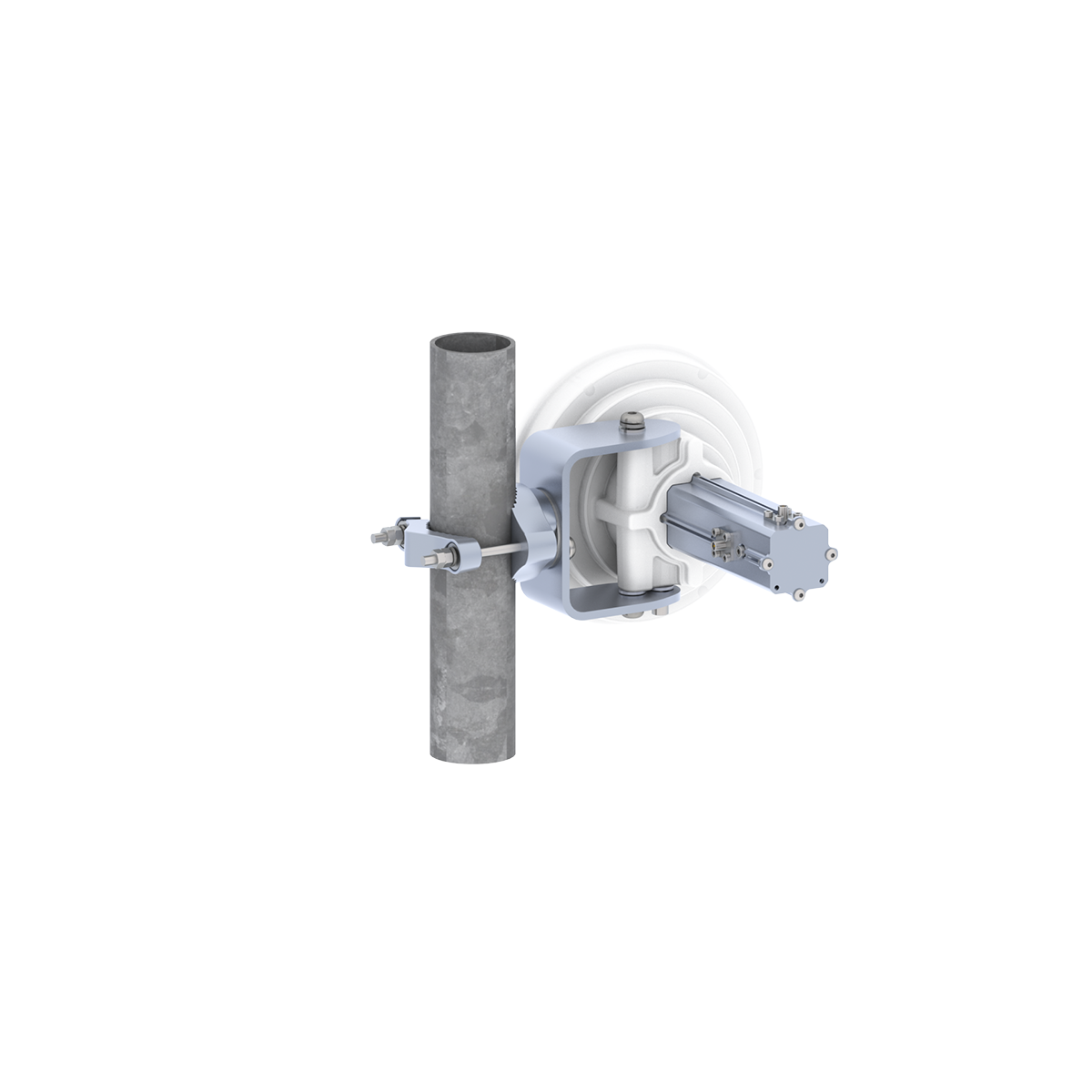

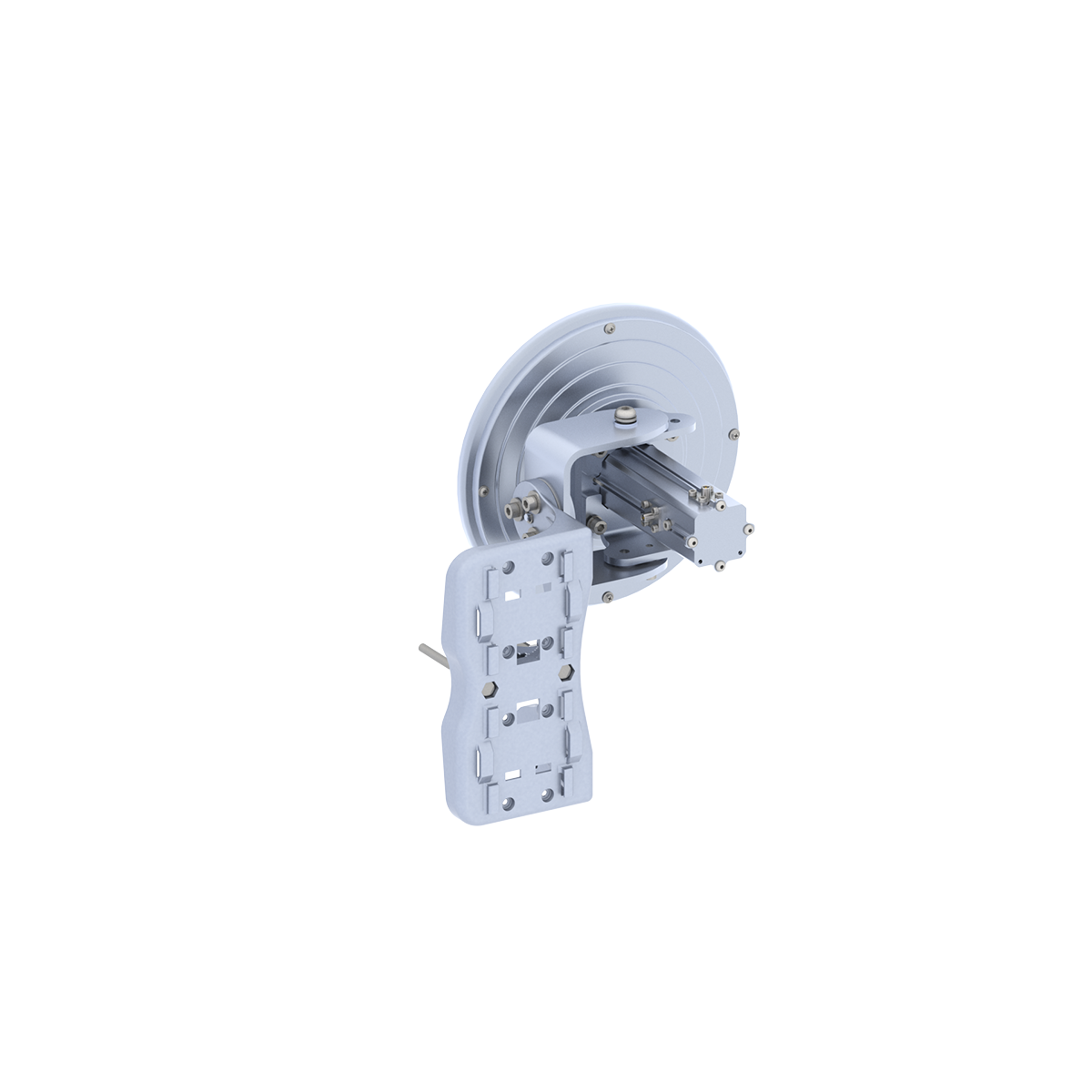

The Algcom SH-5800-10-90-D is a symmetric horn antenna delivering 10dBi of gain across a wide ~61° half-power beamwidth over the full 4.9-6.425GHz band, with a front-to-back ratio above 37dB. Its symmetric radiation pattern and strong isolation make it a clean, wide-coverage PtMP sector for congested towers, with radio-mount hardware for fast field alignment.

  • Authorised distribution
  • Same-day dispatch · cut-off 12:00
  • RMA · 5-day turnaround

Datasheet

Specifications

At-a-glance datasheet

Specifications

source · vendor datasheet

Pricing

Price (incl 15% VAT)
R 3 330,00
Stock — JHB
22 units

Identification

SKU
SH-5800-10-90-D
Brand
ALGcom
Categories
Antennas
Highlights
4.9-6.425GHz full band, 10dBi gain, 90° sector (~61° HPBW), Front-to-back ratio >37dB, PtMP sector antenna

Shipping

Boxed dimensions (L×W×H)
20 × 30 × 32 cm
Boxed weight
2.45 kg

Technical specifications

COMMERCIAL NAME
Symmetric Sector
POLARIZATION
Double (V and H) or Simple (V and H)
GAIN
18.8 dBi
CONNECTION
Female N or Reverse Female SMA
OPENING ANGLE -3 DB
21,3°
OPENING ANGLE -6 DB
30 °
INSULATION BETWEEN DOORS
> 30 dBi
WEIGHT
2.52 kg
FREQUENCY
4.9 - 6.425 GHz
FRONT-TO-BACK RELATIONSHIP
> 40 dB
LINK
Point to Point
WARRANTY
3 Years
fig.sh-5800-10-90-dpricelist · switchcom-pastel-2025-10-06

Stock indicative · live counts arrive with SC-301 · vendor datasheet linked above for full electrical / RF specifications.
