HomeALGcomSH-5800-13-60-D
ALGcom 4.9-6.425Ghz| 13dBi | Front-to-back ratio: >40dB | Beamwidth: 40.9°
fig.sh-5800-13-6 · 01 / 03

ALGcom

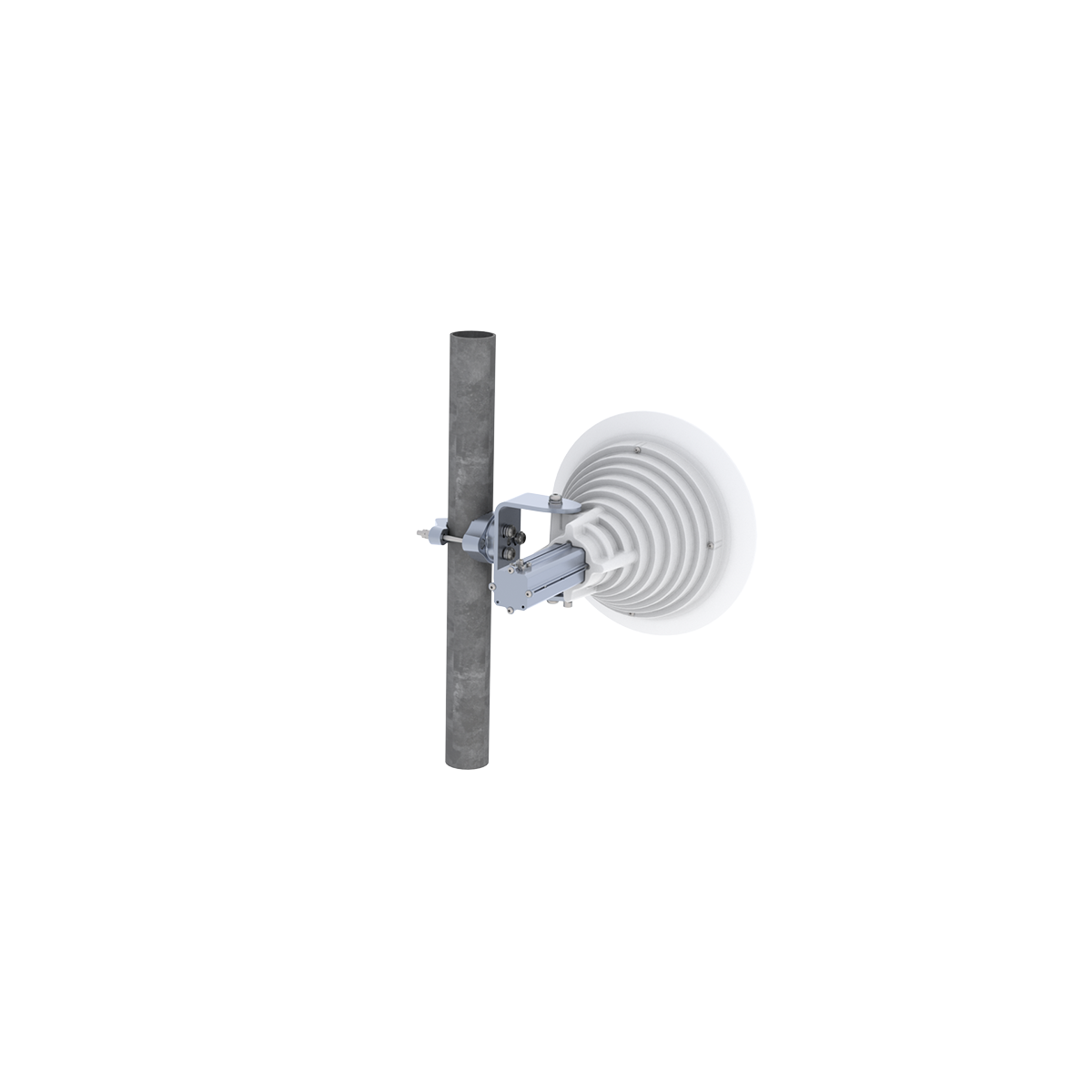

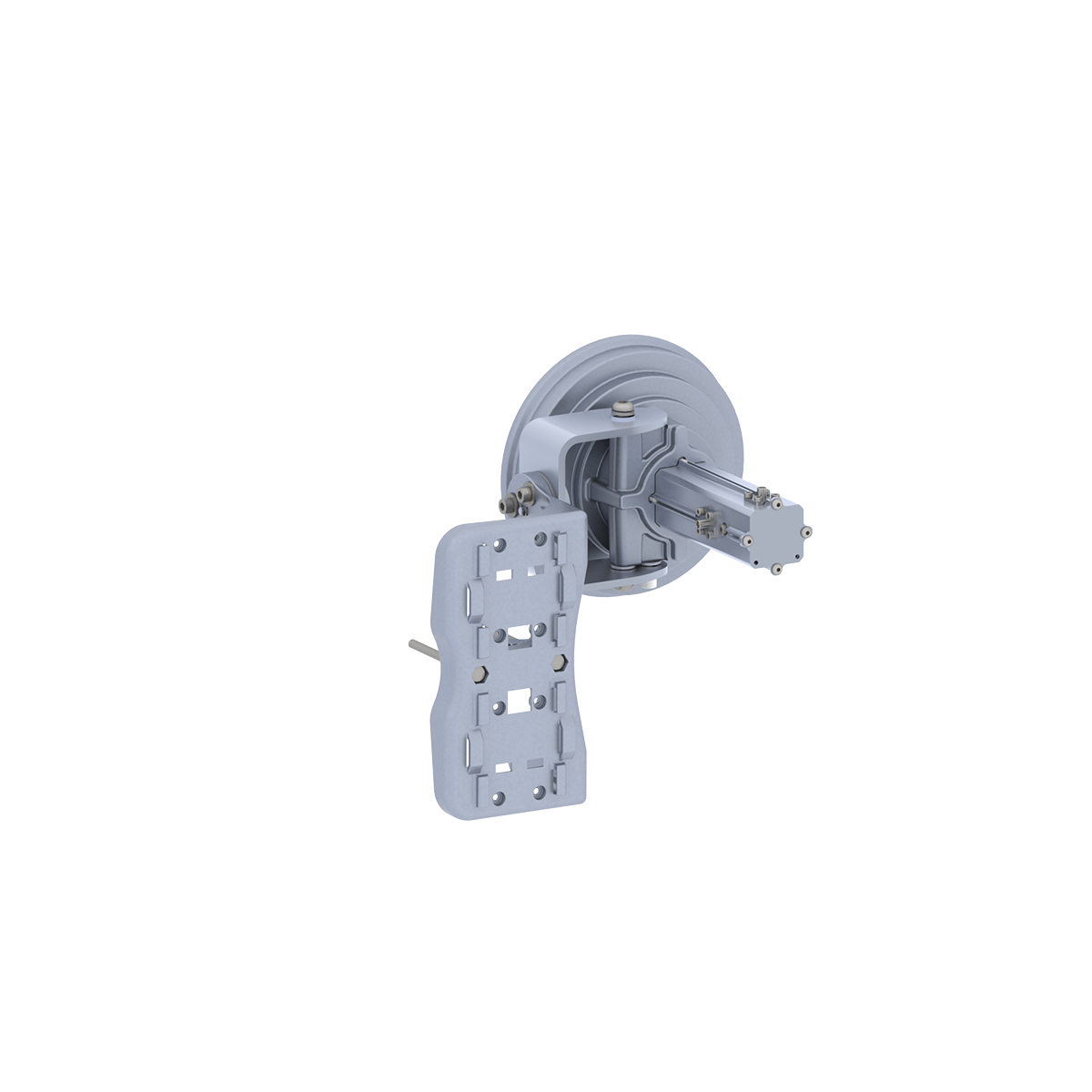

Algcom Symmetric Horn Antenna 4.9-6.425GHz 13dBi 60°

Antenna

SKU
SH-5800-13-60-D
Brand
ALGcom
Stock — JHB
41 in JHB
R 2 640,00Price incl VAT

Same-day dispatch · cut-off 12:00

  • 4.9-6.425GHz full band
  • 13dBi gain
  • 60° sector (~41° HPBW)
  • Front-to-back ratio >40dB
  • PtMP sector antenna

The Algcom SH-5800-13-60-D is a symmetric horn antenna offering 13dBi of gain over a 60° sector (~41° half-power beamwidth) across the full 4.9-6.425GHz band, with a front-to-back ratio above 40dB. Its focused, symmetric pattern and excellent isolation let operators build denser, cleaner PtMP sectors on busy towers, with quick radio mounting and precise aiming.

  • Authorised distribution
  • Same-day dispatch · cut-off 12:00
  • RMA · 5-day turnaround

Datasheet

Specifications

At-a-glance datasheet

Specifications

source · vendor datasheet

Pricing

Price (incl 15% VAT)
R 2 640,00
Stock — JHB
41 units

Identification

SKU
SH-5800-13-60-D
Brand
ALGcom
Categories
Antennas
Highlights
4.9-6.425GHz full band, 13dBi gain, 60° sector (~41° HPBW), Front-to-back ratio >40dB, PtMP sector antenna

Shipping

Boxed dimensions (L×W×H)
39 × 30 × 39 cm
Boxed weight
2.25 kg

Technical specifications

COMMERCIAL NAME
Symmetric Sector
POLARIZATION
Double (V and H) or Simple (V and H)
GAIN
13.6 dBi
CONNECTION
Female N or Reverse Female SMA
OPENING ANGLE -3 DB
40.9°
OPENING ANGLE -6 DB
60 °
INSULATION BETWEEN DOORS
> 30 dBi
WEIGHT
2.20 kg
FREQUENCY
4.9 - 6.425 GHz
FRONT-TO-BACK RELATIONSHIP
> 40 dB
LINK
Point to Point
WARRANTY
3 Years
fig.sh-5800-13-60-dpricelist · switchcom-pastel-2025-10-06

Stock indicative · live counts arrive with SC-301 · vendor datasheet linked above for full electrical / RF specifications.
