TP-Link

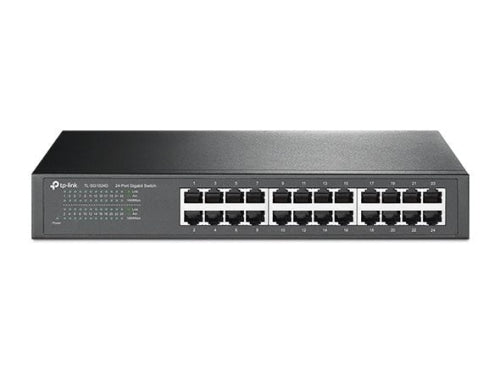

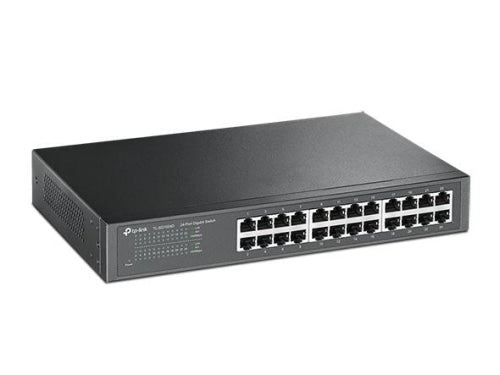

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch
Managed switch
- SKU
- TL-SG1024D
- Brand
- TP-Link
- Stock — JHB
- 12 in JHB
R 1 950,00Price incl VAT
Same-day dispatch · cut-off 12:00
- 24x Gigabit ports
- Unmanaged plug-and-play
- Steel case, rackmountable
- Wire-speed switching
- Office & rack aggregation
The TP-Link TL-SG1024D is a 24-port Gigabit unmanaged switch in a durable steel case that mounts in a rack or sits on a desk, offering wire-speed plug-and-play connectivity with no configuration. A reliable, cost-effective aggregation switch for installers wiring up offices, comms rooms and small-business networks.
- Authorised distribution
- Same-day dispatch · cut-off 12:00
- RMA · 5-day turnaround
Datasheet
Specifications
At-a-glance datasheet
Specifications
source · vendor datasheet
Pricing
- Price (incl 15% VAT)
- R 1 950,00
- Stock — JHB
- 12 units
Identification
- SKU
- TL-SG1024D
- Brand
- TP-Link
- Categories
- Switches
- Highlights
- 24x Gigabit ports, Unmanaged plug-and-play, Steel case, rackmountable, Wire-speed switching, Office & rack aggregation
Shipping
- Boxed dimensions (L×W×H)
- 40 × 25 × 6 cm
- Boxed weight
- 2 kg
Technical specifications
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
- Interface
- 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity
- Fanless
- Physical Security Lock
- No
- Power Supply
- 100-240VAC, 50/60Hz
- Power Consumption
- Maximum: 13.1W (220V/50Hz)
- Dimensions ( W x D x H )
- 11.6*7.1*1.7 in. (294*180*44 mm)
- Mounting
- Rack Mountable
- Max Power Consumption
- 13.62W(220V/50Hz)
- Max Heat Dissipation
- 46.44BTU/h
- Switching Capacity
- 48Gbps
- Packet Forwarding Rate
- 35.7Mpps
- MAC Address Table
- 8K
- Jumbo Frame
- 10KB
- Green Technology
- Yes
- Transfer Method
- Store-and-Forward
- Certification
- FCC, RoHS
- Package Contents
- 24-Port Gigabit Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kits Rubber Feet
- Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing
Stock indicative · live counts arrive with SC-301 · vendor datasheet linked above for full electrical / RF specifications.
